Product Description
Model: DSW-100
Parameter List
| Device dimension: | 520mm * 95mm*82mm |

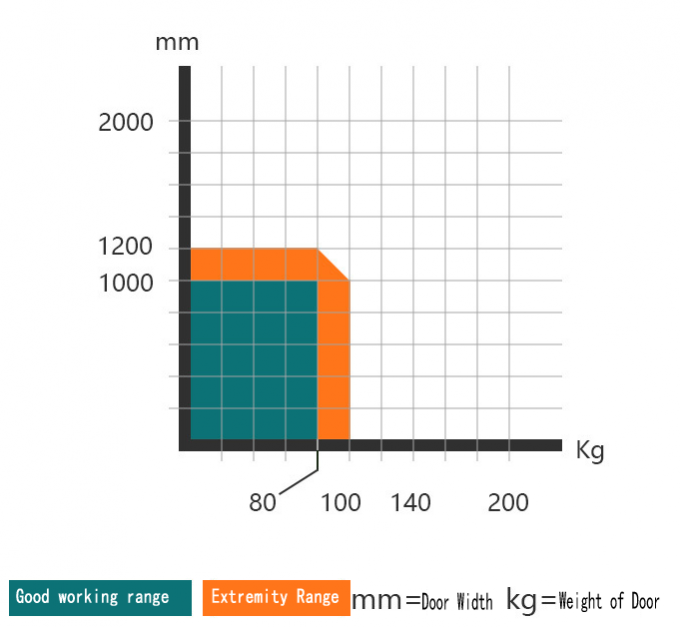

| Door leaf Width: | <1200 mm |
| Door leaf weight: | < 100Kg |
| Materials: | Aluminum Alloy Housing |
| Voltage: | 100V – 240V AC |
| Adjustable Open time | 3~7S /90° |
| Adjustable holding time | 1-30S |
| Adjustable close time | 3~7S/90° |
| Max door frame depth | 450mm |
| Max opening angle: | 120° |
| Environment Temperature: | -20 ~ 50 ℃ |
| Protection class: | IP12D |
| Net Weight: | 6.5Kg |
| Packing: | 4 sets / Carton |
| Carton Weight | 32Kg / Carton |
Feature:
- Strength Aluminum Alloy housing, Modelling Concise, Esthetic and Practical.
- Available for wooden door, frame metal door, fire proof door, used in offical, Hospital, or Apartment.
- Available for swing-in or swing-out door.
- Available door weight is 70-120cm, and door leaf weight up to 100kg.
- With remote control, distance is 10M. 4 models for setting
- Input is 100-240V, wide voltage, available for any country.
- Can be worked with any kind of access controller.
- Have two door leafs interlock or synchronization function.
- Have sensor feedback for checking opener status.
